Aerial work platform

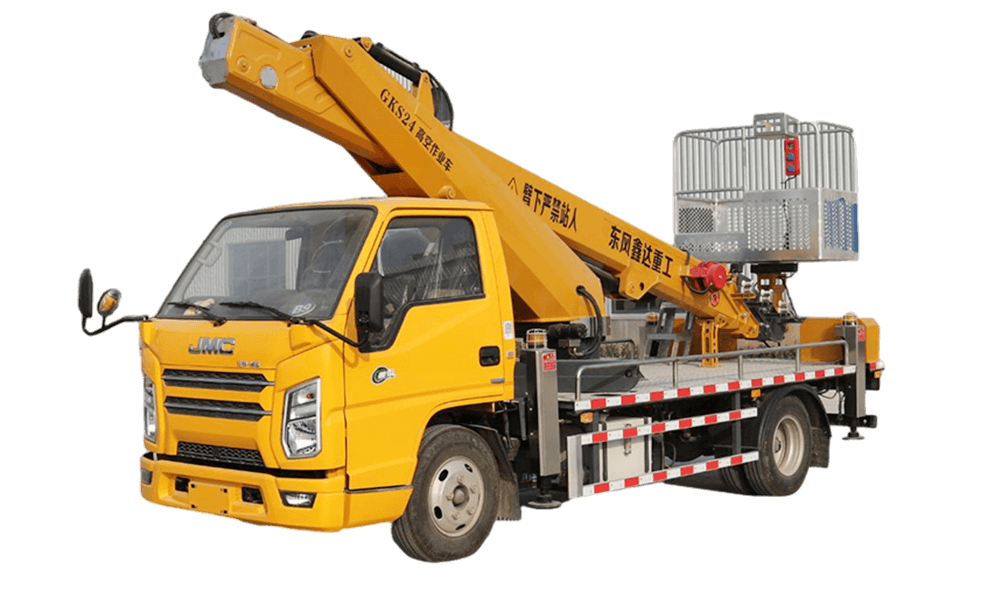

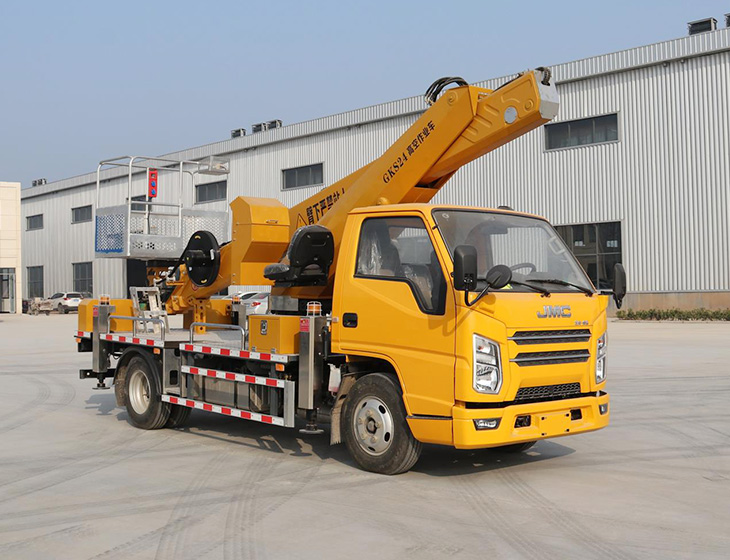

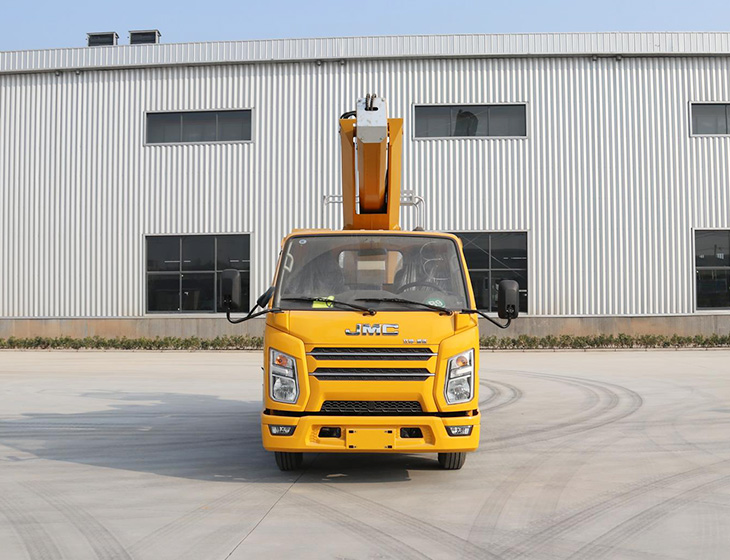

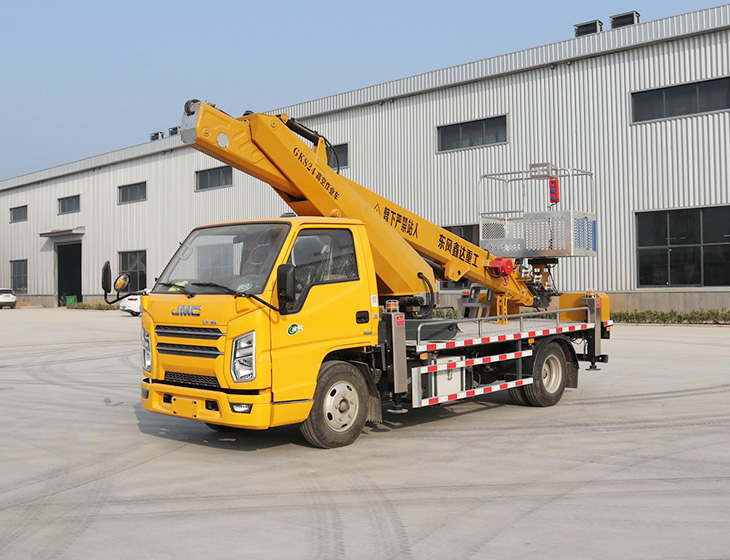

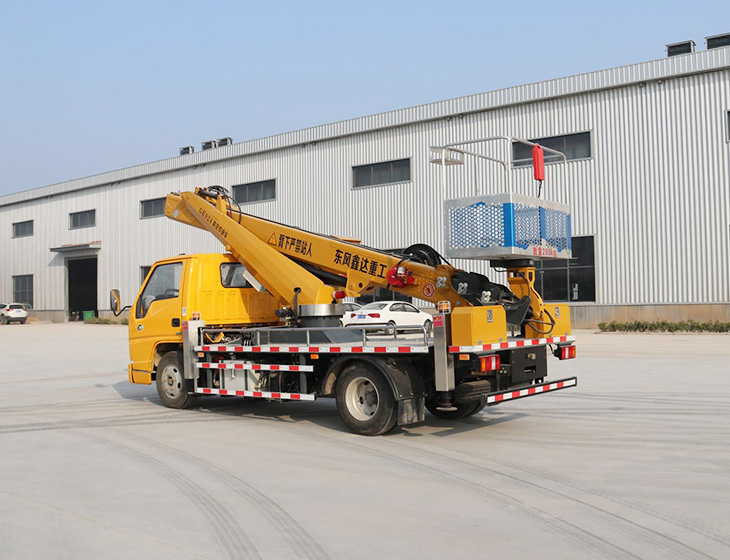

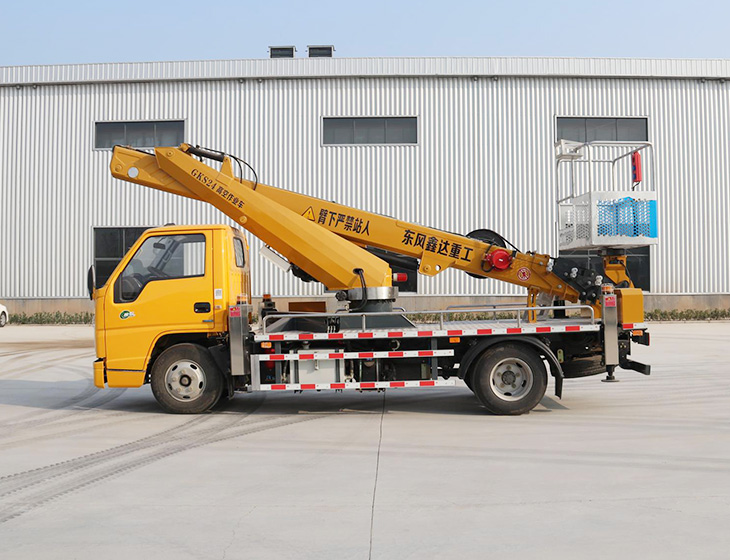

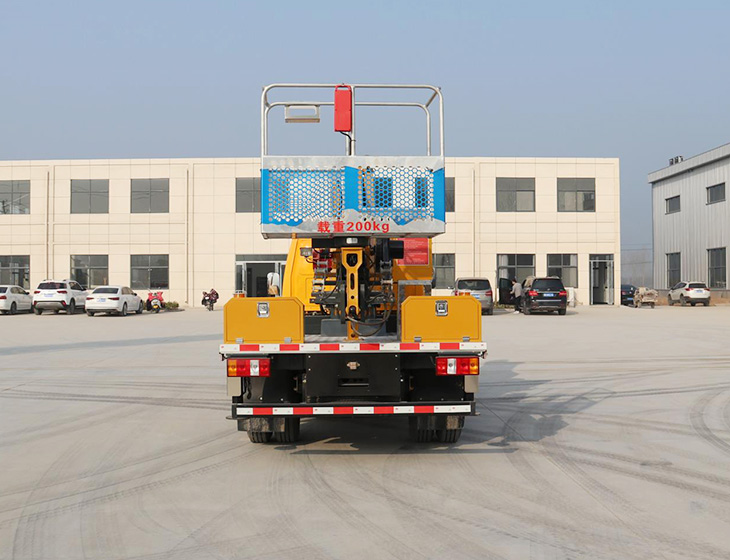

24m Aerial Work Platform

The Aerial work platform is widely used in engineering construction, plant maintenance, plant construction, municipal administration, power, street lamps, communication, garden, transportation, industrial and mining, industrial installation, equipment maintenance, stereoscopic warehouse, billboard installation, film and television advertising, overhead pipeline laying, pipeline laying, venue maintenance, viaduct construction and painting, etc.

Inquiry whatsapp

Technical parameters

Cabinet Minister:

5995

Total Width:

2000

Total height:

2950

Total mass:

4495

Wheel base:

3360

Maximum operation height:

23.7

DXD5041JGKJX6-24M	project	unit	technical parameter
Vehicle size parameters	cabinet minister	mm	5995
	total width	mm	2000
	total height	mm	2950
	total mass	kg	4495
	wheel base	mm	3360
Main performance parameters	Maximum operation height	m	23.7
	Maximum operation range	m	14.5
	Rated load of the work platform	kg	200
	Turn table rotation Angle	°	± 360°
	Front leg spread width	mm	4400
	Rear leg spread width	mm	4100
Chassis parameters	Chassis model	-	JX1041TG26 Jiangling Shunda
	engine type	-	JX4D30B6H
	Engine power	kw/ps	85/115
	effluent standard	-	Six countries
	Maximum driving speed	km/h	100
	Approximate number	man	2
	approach angle	°	20
	departure angle	°	15

More Parameter Information

Dongfeng Xinda 24m Aerial Work Platform Advantage

Blue card C photo, worry free driving

1. A lightweight telescopic arm product with a length of less than 6 meters and a total mass of less than 4.5 tons, meeting the requirements of the blue brand;
2. Low driver's license requirements: Blue license vehicles with C1 or above license plates can be driven, and operators can drive on their own;
3. Wide range of traffic: Blue license cars can pass through the city, while yellow license cars need to obtain a pass when entering the city;
4. Low operating costs: Blue car tolls and maintenance fees are low, and there is no need to obtain an operating certificate.

High work efficiency and good work performance

1. The working height is 24 meters, and the maximum operating range can reach 14.5 meters, subverting industry standards;
2. It can synchronously achieve turntable rotation, boom luffing, boom extension and platform rotation actions, improving work efficiency;
3. This car adopts four straight arms, synchronous telescopic, stepless speed regulation, and superior operational performance.

The entire vehicle design is compact and has excellent passing performance

The vehicle is compact in size and suitable for various complex and narrow workplaces, with flexible mobility.

Excellent safety performance

The safety devices are complete, including oil cylinder retraction devices, leg retraction devices, interlocking devices for boarding and alighting, emergency stop devices, soft leg protection devices, and emergency manual operation systems, to ensure the safety of high-altitude operations.

Remote control operation, easy and comfortable

Wireless remote control technology ensures that operators can operate flexibly and conveniently in a narrow working environment, eliminate blind spots, and have a better view of work. In addition, it prevents operators from enduring severe cold and hot we
