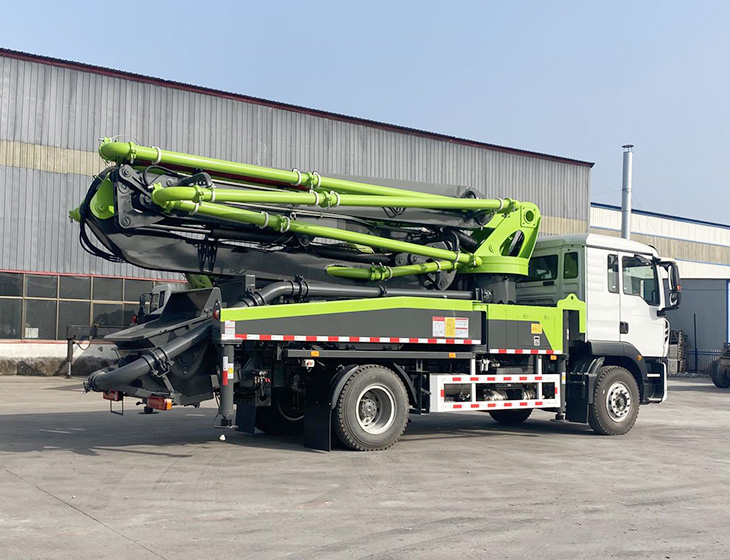

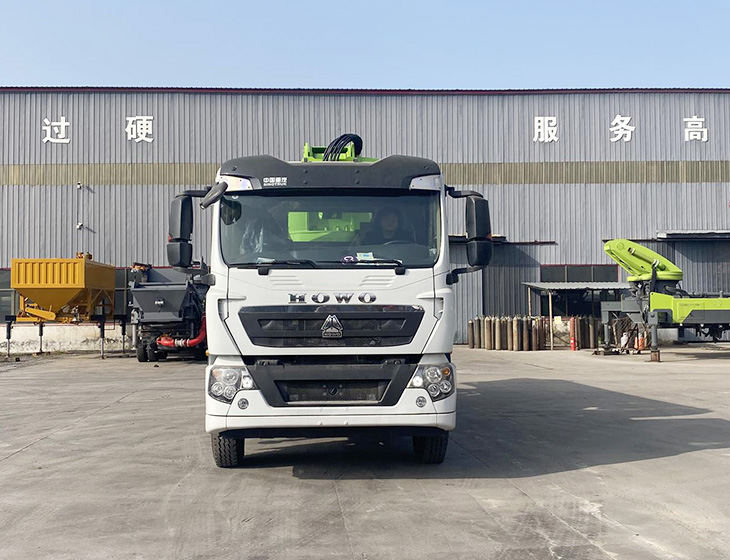

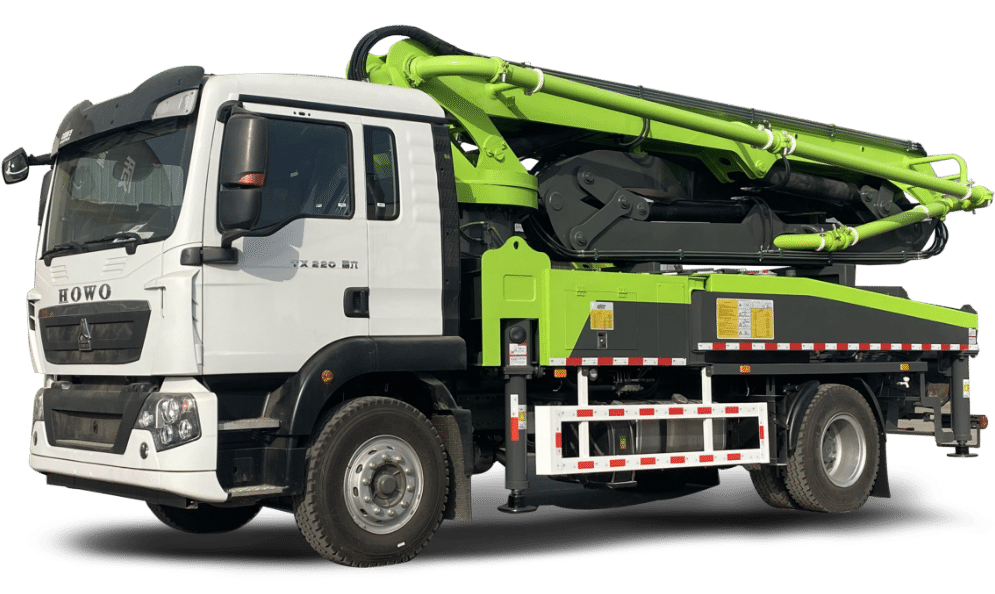

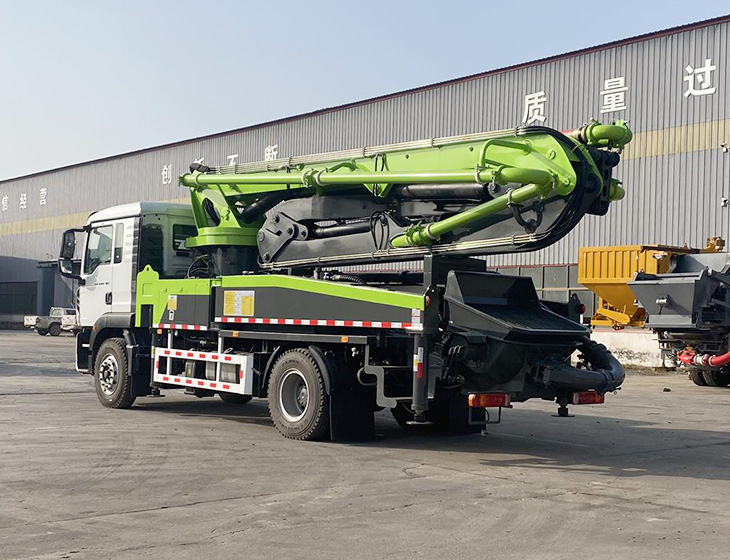

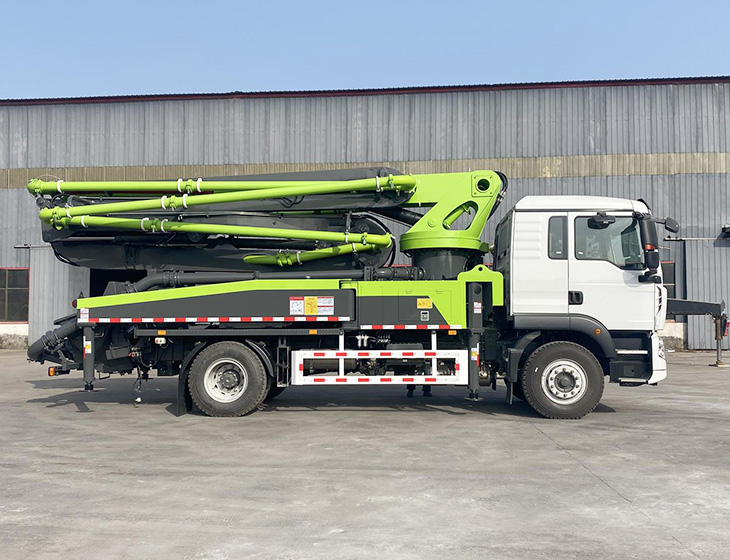

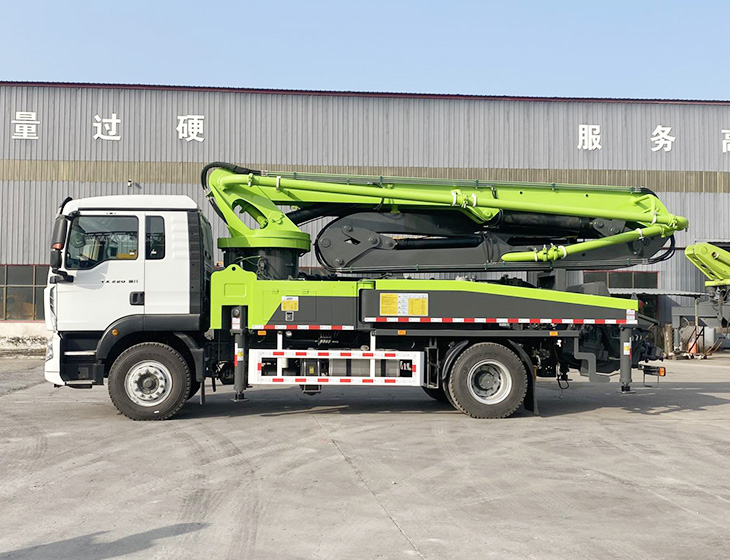

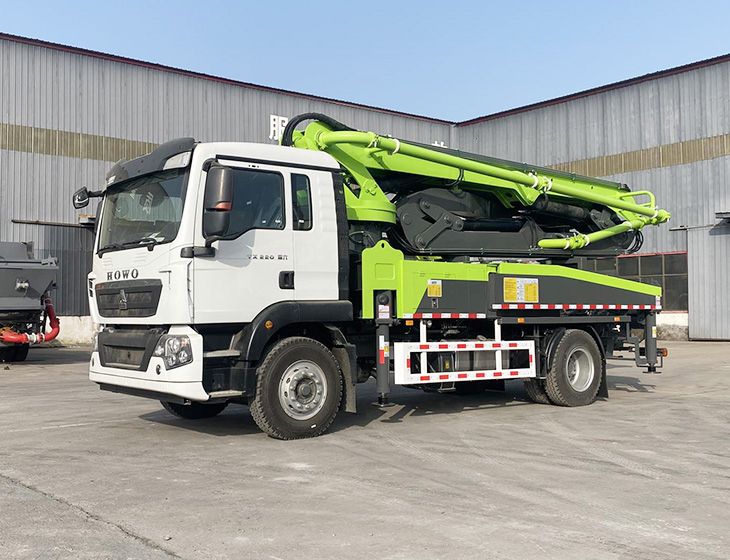

31 Meters of Concrete Pump Truck

Technical parameters

Chassis:

Sinotruk Howo

Emission standard:

Six countries

Engine brand:

Weichai

Engine horsepower:

220

Bridge number:

Wheel base:

4500

DXD5180THBL	project		unit	technical parameters
Chassis and complete vehicle parameters	chassis		-	Sinotruk Howo
	emission standard		-	Six countries
	Engine brand		-	Weichai
	Engine horsepower		PS	220
	Bridge number		-	2
	wheel base		mm	4500
	Total length * total width * total height		mm	900025003470
	Vehicle quality		kg	18000
Arm frame and support leg parameters	Maximum fabric height		mm	30700
	Maximum fabric radius		mm	26100
	Maximum fabric depth		mm	17000
	Arm frame folding mode		-	RZ
	The first arm	length	mm	6600
	The first arm	corner	°	89°
	The second arm	length	mm	5150
	The second arm	corner	°	180°
	The third arm	length	mm	4785
	The third arm	corner	°	180°
	The fourth arm	length	mm	5170
	The fourth arm	corner	°	235°
	The fifth arm	length	mm	5575
	The fifth arm	corner	°	180°
	Turn table rotation Angle		°	359°
	Open the leg		-	X- H

	Front leg spread width	mm	5800
	Rear leg spread width	mm	6100
Pumping system	Maximum theoretical pumping capacity	m³/h	100
	Maximum export pressure	Mpa	8.5
	The number of theoretical pumps	Time / minute	25
	Hydraulic system pressure	Mpa	32
	The inner diameter of the conveying cylinder	mm	230
	Delivery cylinder trip	mm	1400
	Transmission pipe diameter	mm	125
	Hydraulic oil cooling mode	-	air patenting
	Pumping the concrete collapse degree	mm	160-220
	Maximum aggregate size	mm	40
	Hydraulic system type	-	open-type system

More Parameter Information

Dongfeng Xinda 31 Meters Pump Truck Advantage

Rural pump truck market industry leader

Since 2009, the first single bridge pump truck in China, it has been optimized and upgraded. The 31-meter small pump truck, designed to solve the rural path, has become the most practical model in the rural pump truck market.

Vehicle design, reasonable and lean

The total length of the vehicle is 9 meters, the total height is 3.47 meters, the wheelbase is 4.5 meters, are the smallest in the same meter section of the peer, the transition is flexible, more easy to cope with the narrow and complex construction site in rural areas.

Pumping work, strong and efficient

The pumping system adopts a large diameter conveying cylinder, which is strong and efficient, and the maximum theoretical pumping capacity can reach 100m³ / h.

Sky pump, ground pump double mode

The tail takes over the second to change the car pump, the horizontal distance between the pump pipe can reach 300 meters, one machine is multi-purpose, economical and efficient.

Safe, reliable, stable and efficient

Using the active shock absorption technology of the boom, the vibration range of the boom under the full working condition is ± 0.2 meters, and the connection design of the open shaft structure boom reduces the impact on the key parts of the boom by more than 30%.

Energy conservation and emission reduction, economic reliability

The pumping displacement is automatically matched with the engine power, and adapadjusted during the working process, the fuel consumption is reduced by 15%. Wireless remote control with one key start Dynamic system, easy to operate, economical and reliable.

Intelligent digital, real-time control

The electronic control system is connected with the cloud platform, freely mastering the device status, self-diagnosis, etc., and can view the device position, driving path, and working time at the terminal in real time.

Professional focus, whole-hearted service

Free one-to-one on-site training service, free door-to-door inspection service, 1 hour rapid response, 24 hours after-sales service, efficient service, The whole worry-free.
