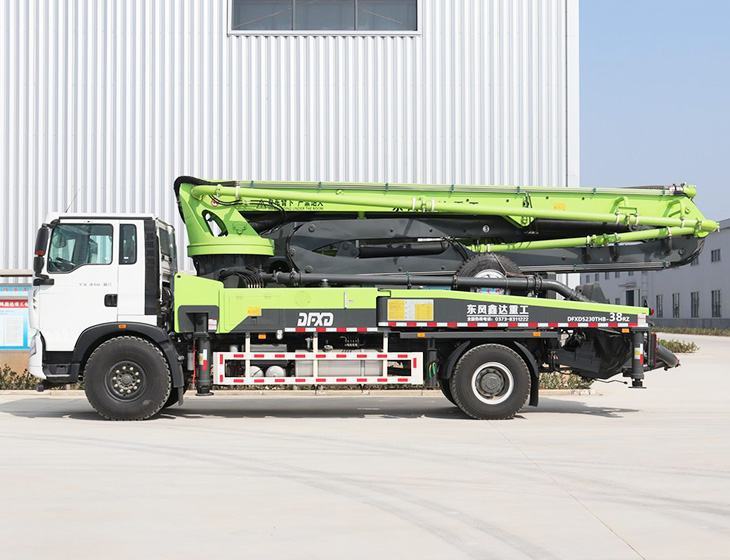

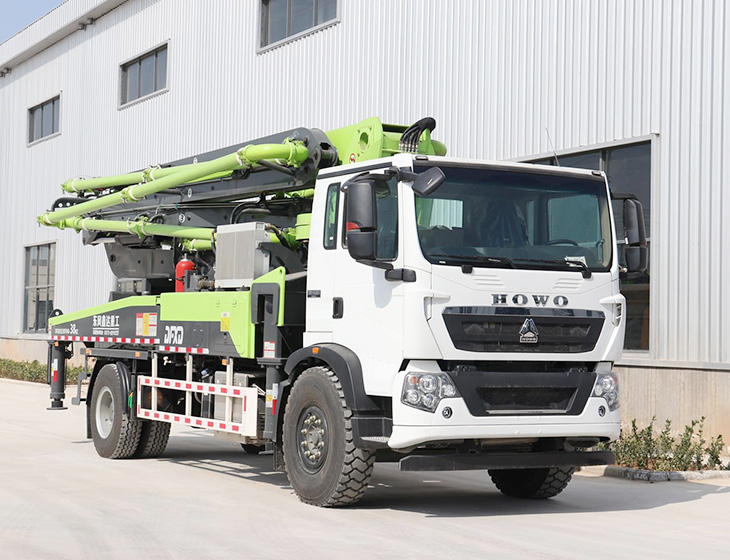

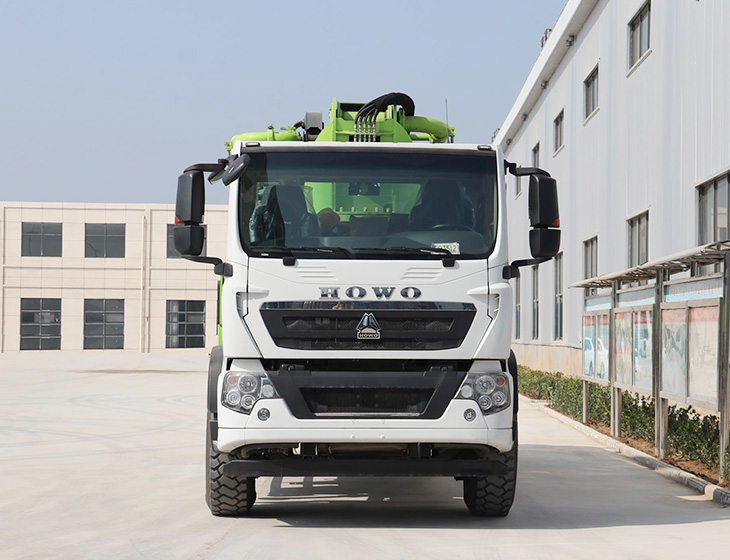

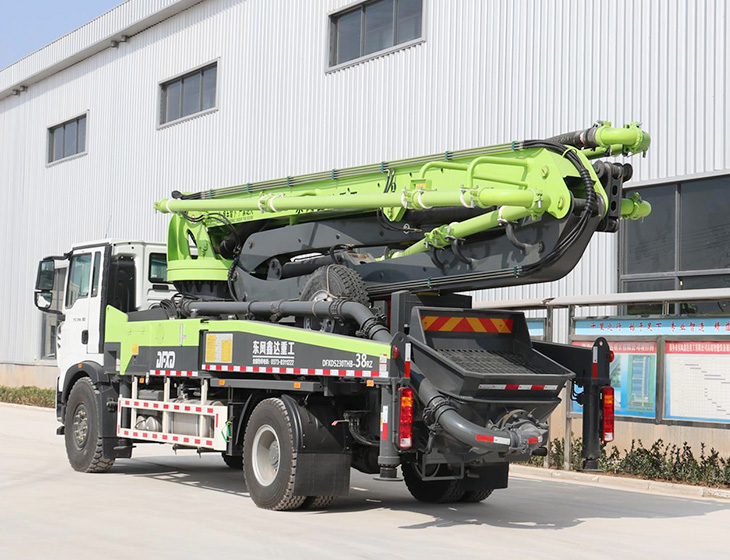

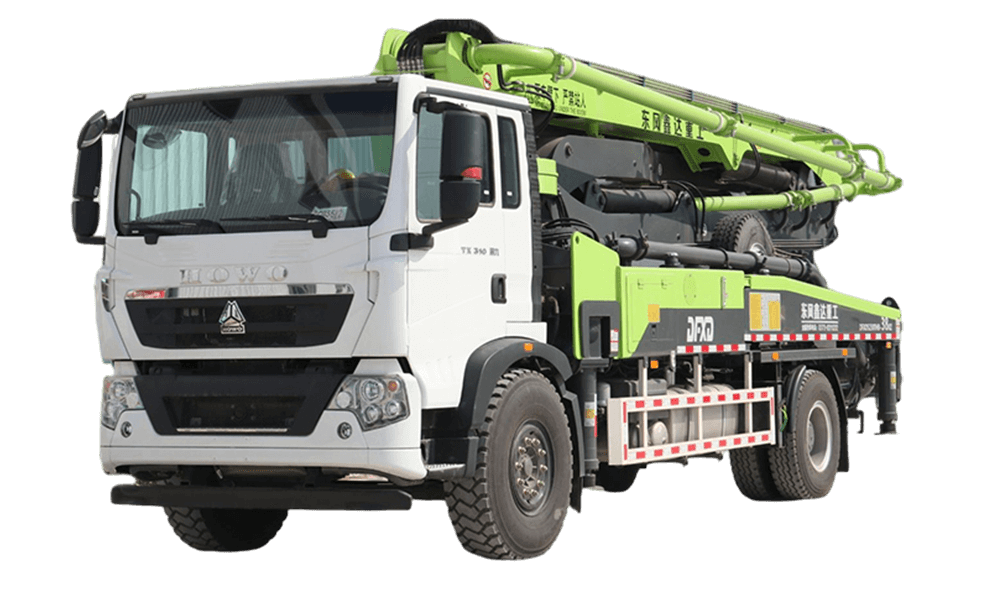

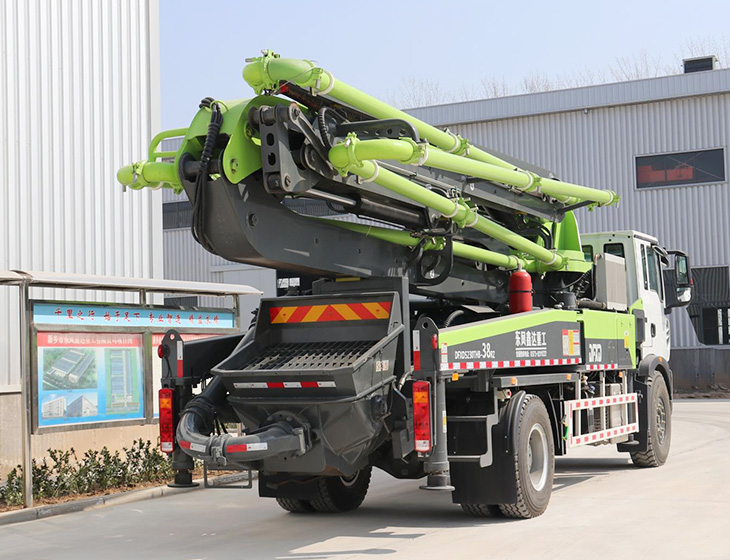

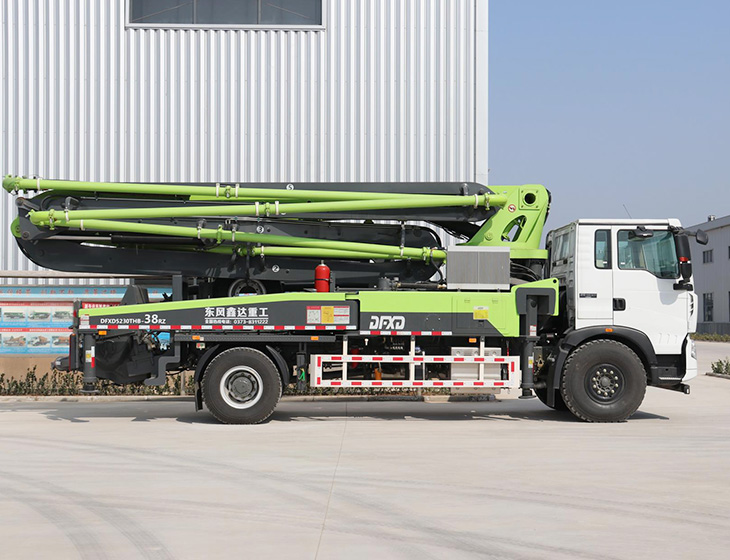

38 Meters of Concrete Pump Truck

The shortest body, the shortest body, the shortest wheelbase, the best passability, the most suitable for rural use of the pump truck.

Technical parameters

Chassis:

Sinotruk Howo

Emission standard:

Six countries

Engine brand:

German man

Engine horsepower:

310

Bridge number:

Wheel base:

5200

DXD5237THBL	project		unit	technical parameters
Chassis and complete vehicle parameters	chassis		-	Sinotruk Howo
	emission standard		-	Six countries
	Engine brand		-	German man
	Engine horsepower		Ps	310
	Bridge number		-	2
	wheel base		mm	5200
	Total length * total width * total height		mm	980025003600
	Vehicle quality		g	23000
Arm frame and support leg parameters	Maximum fabric height		mm	37200
	Maximum fabric radius		mm	33000
	Maximum fabric depth		mm	25000
	Arm frame folding mode		-	RZ
	The first arm	length	mm	7700
	The first arm	corner	°	89°
	The second arm	length	mm	6300
	The second arm	corner	°	180°
	The third arm	length	mm	5850
	The third arm	corner	°	180°
	The fourth arm	length	mm	6700
	The fourth arm	corner	°	235°
	The fifth arm	length	mm	7200
	The fifth arm	corner	°	180°
	Turn table rotation Angle		°	359°
	Open the leg		-	X- H

	Front leg spread width	mm	7050
	Rear leg spread width	mm	7200
Pumping system	Maximum theoretical pumping capacity	m³/h	110
	Maximum export pressure	Mpa	8.5
	The number of theoretical pumps	Time / minute	25
	Hydraulic system pressure	Mpa	32
	The inner diameter of the conveying cylinder	mm	230
	Delivery cylinder trip	mm	1600
	Transmission pipe diameter	mm	125
	Hydraulic oil cooling mode	-	air patenting
	Pumping the concrete collapse degree	mm	160-220
	Maximum aggregate size	mm	40
	Hydraulic system type	-	open-type system

More Parameter Information

Dongfeng Xinda 38 Meters Pump Truck Advantage

Rural pump truck market industry leader

Since 2009, it has developed the first single-bridge 26-meter pump truck in China, and successively created the first 33-meter pump truck and 38-meter pump truck in China, filling the gap in the rural pump truck market and taking the lead in the rural pump truck market.

Vehicle design, reasonable and lean

The total length of the vehicle is 9.8 meters and the total height is 3.6 meters, which is the smallest in the same meter section of the peer. The transition is flexible and more easy to cope with the narrow and complex construction site in rural areas.

Pumping work, strong and efficient

The pumping system adopts a large diameter conveying cylinder, which is strong and efficient, and the maximum theoretical pumping capacity can reach 110m³ / h.

Sky pump, ground pump double mode

The tail takes over the second to change the car pump, the horizontal distance between the pump pipe can reach 300 meters, one machine is multi-purpose, economical and efficient.

Safe, reliable, stable and efficient

Using the active shock absorption technology of the boom, the vibration range of the boom under the full working condition is ± 0.2 meters, and the connection design of the open shaft structure boom reduces the impact on the key parts of the boom by more than 30%.

Energy conservation and emission reduction, economic reliability

The pumping displacement is automatically matched with the engine power, and adapadjusted during the working process, the fuel consumption is reduced by 15%. Wireless remote control with one key start Dynamic system, easy to operate, economical and reliable.

Intelligent digital, real-time control

The electronic control system is connected with the cloud platform, freely mastering the device status, self-diagnosis, etc., and can view the device position, driving path, and working time at the terminal in real time.

Professional focus, whole-hearted service

Free one-to-one on-site training service, free door-to-door inspection service, 1 hour rapid response, 24 hours after-sales service, efficient service, The whole worry-free.
