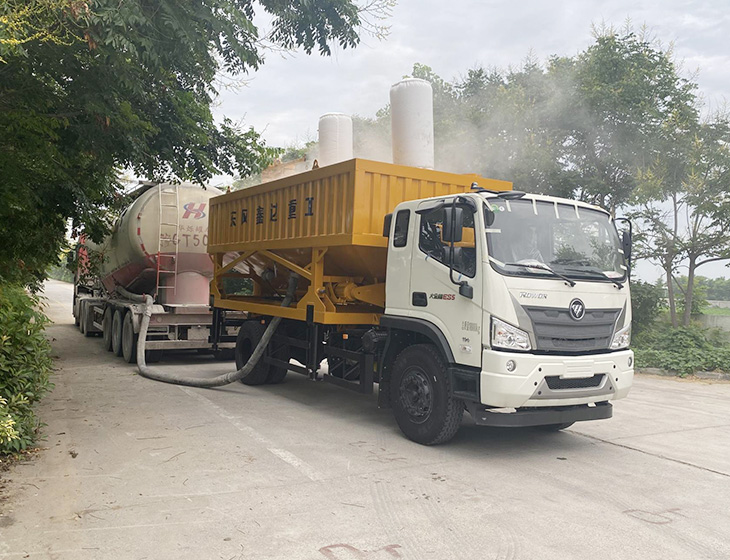

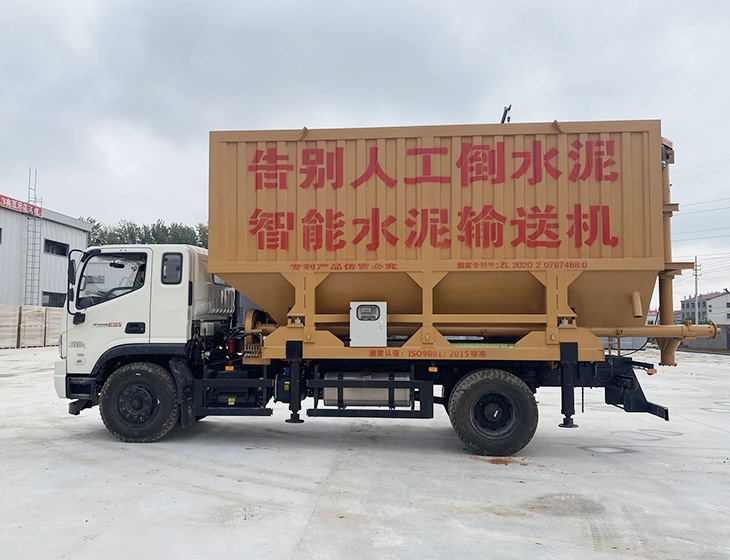

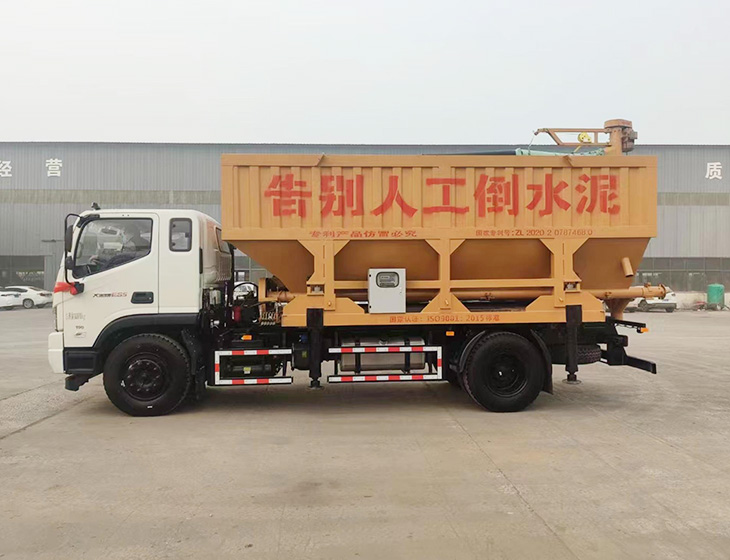

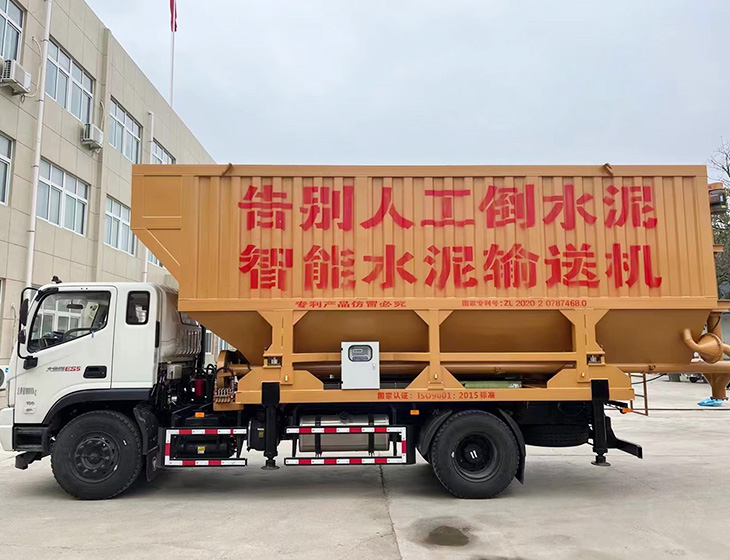

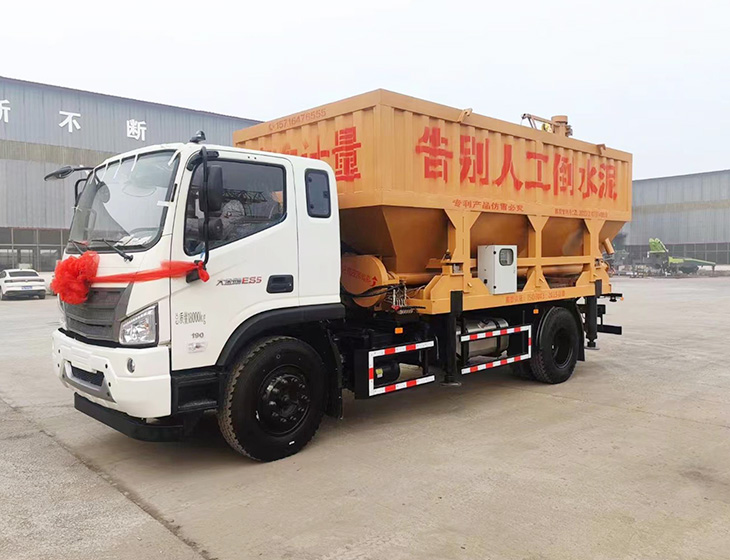

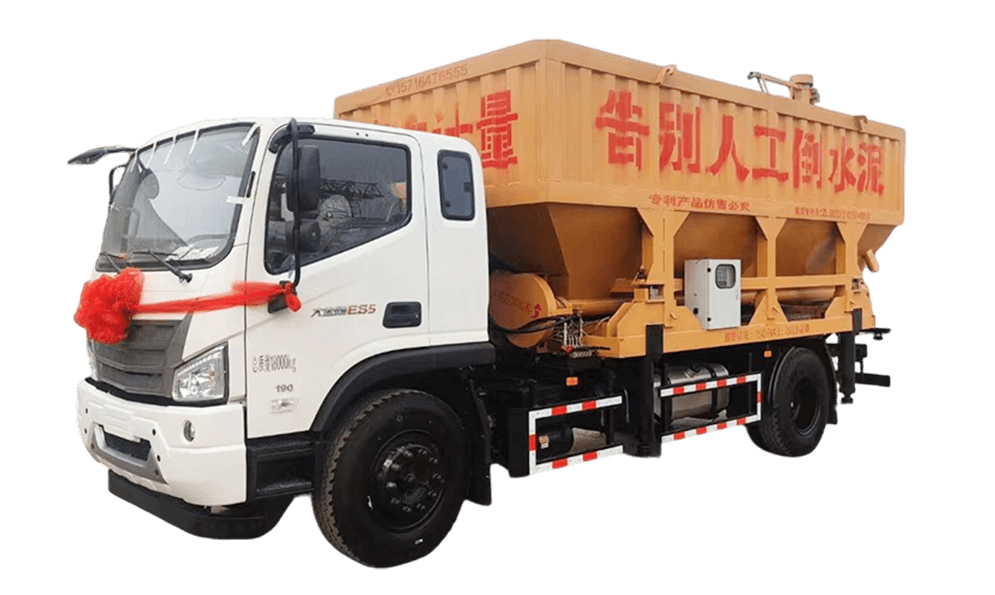

20 Ton Cement Conveyor Truck

Technical parameters

Chassis:

Foton BJ1184VKPFG

Engine model:

Weichai 190 hp

Total length * total width * total height:

7600*2500*3900 (mm)

Gross weight(kg):

18000

Wheel base:

4500

Conveyor motor:

5.5

DXD5180ZKXBJ6	project	unit	Technical parameters
Chassis and vehicle parameters	Chassis model	-	Foton BJ1184VKPFG
	Engine Model	ps	Weichai 190 hp
	total lengthtotal widthtotal height	mm	760025003900
	Total weight	kg	18000
	Wheelbase	mm	4500
Main parameters of cement silo	Conveyor Motor	kw	5.5
	Auxiliary Motor	kw	4
	Cement delivery per minute	kg	500
	Cement silo capacity	t	20/30/50

More Parameter Information

Dongfeng Xinda 20 Ton Cement Conveyor Truck Advantage

Legal on the road, one machine with multiple warehouses, cost-effective

1. One machine with multiple warehouses: one machine can be used with multiple cement warehouses, and multiple construction sites can be used at the same time;

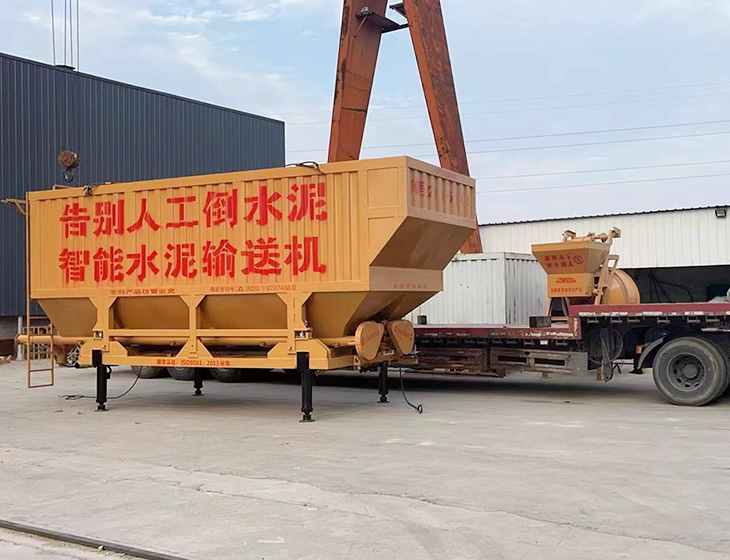

2. Separation of vehicle and warehouse: patented product, operated by one person, the chassis and cement warehouse are automatically combined and separated, and the process only takes 60 seconds;
3. On the road in compliance with laws and regulations: legal household registration nationwide, so that your cement delivery truck can travel unimpeded.

Overturning the new model of cement use, the bagged cement terminator makes your cement construction easy to complete

1. Bagged cement terminator: Compared with bagged cement, it saves the cost of manual loading and unloading, and saves the process of cement dumping;
2. High cement conveying efficiency: intelligent remote control operation, conveying 500 kg of cement per minute;
3. Intelligent and worry-free: set quantitative delivery at any time, and control the amount of cement and the remaining amount of cement in real time.

Energy saving, emission reduction, waste avoidance, material cost reduction

1. The cost of bagged cement is high: the cost of bagged cement per ton is 30-50 yuan higher than that of bulk cement, and the cost of cement bags is saved;
2. Bagged cement is not easy to store, and it is easy to harden in rainy days: the cement silo is fully enclosed, and the cement box is moisture-proof, waterproof and easy to store;
3. The cement silo can prevent bagged cement from leaking and dumping during the process of handling and dumping, and avoid material waste.

Unloading cement is miserable, making tiring work easier

1. Save the cost of 2 cement workers every day: construction does not require manual handling and dumping of cement, and remote control timing and quantitative delivery;
2. Save the cost of cement loading and unloading: bagged cement requires manual loading and unloading procedures, saving 20-30 yuan per ton of cement;

Accurate measurement, environmental protection and sanitation

1. Accurate measurement: Equipped with electronic induction weighing system and dynamic electronic scale, real-time control of the remaining amount saves trouble and worry;
2. The whole process of cement transportation is closed: avoid the open-air transportation of bagged cement from the cement plant to the construction site, which is environmentally friendly and hygienic;

Full service, develop the cement market and get rich

1. The whole process of experience training and exchange guidance allows you to easily control the use of equipment.
